Мачтовый подъемник GMHAMWP6100

Мачтовый подъемник GMHAMWP6100

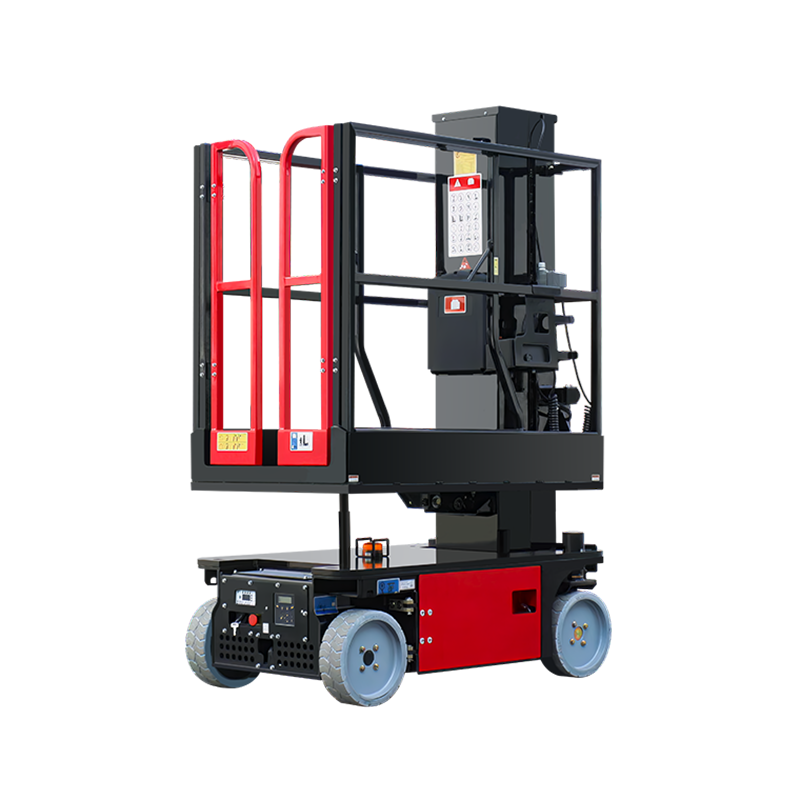

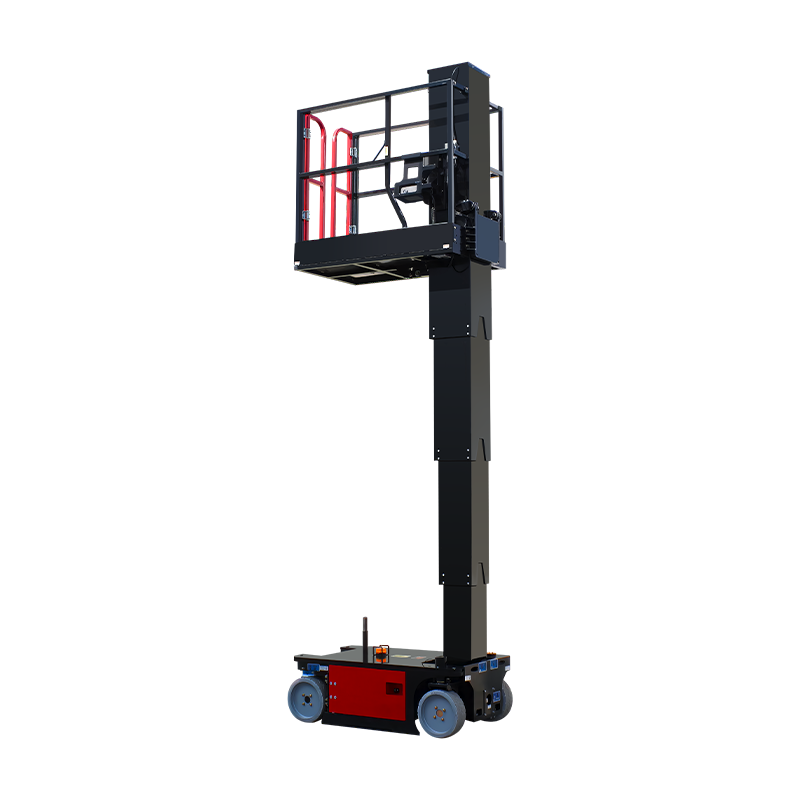

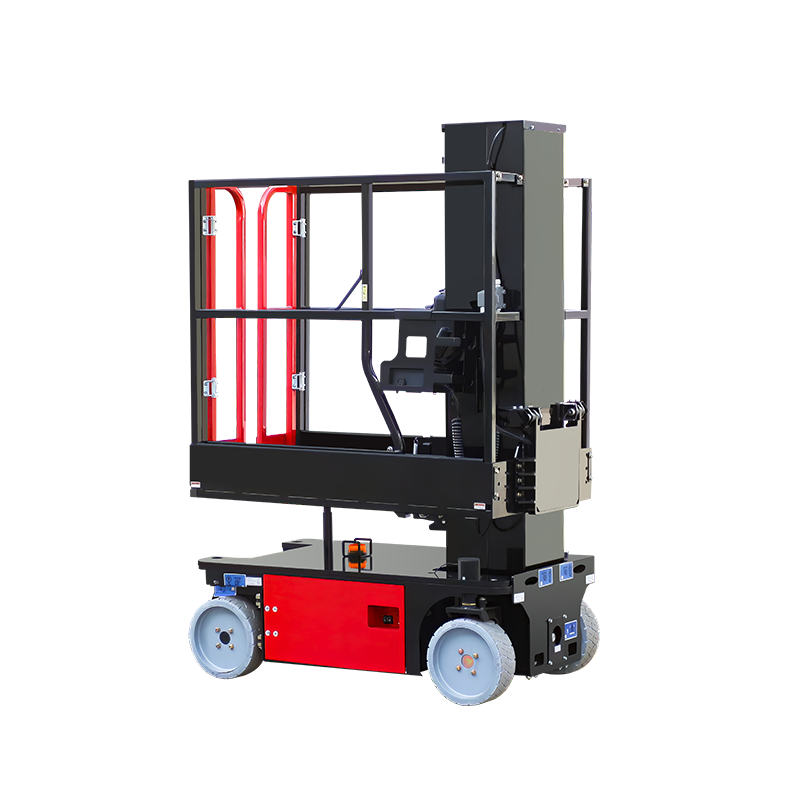

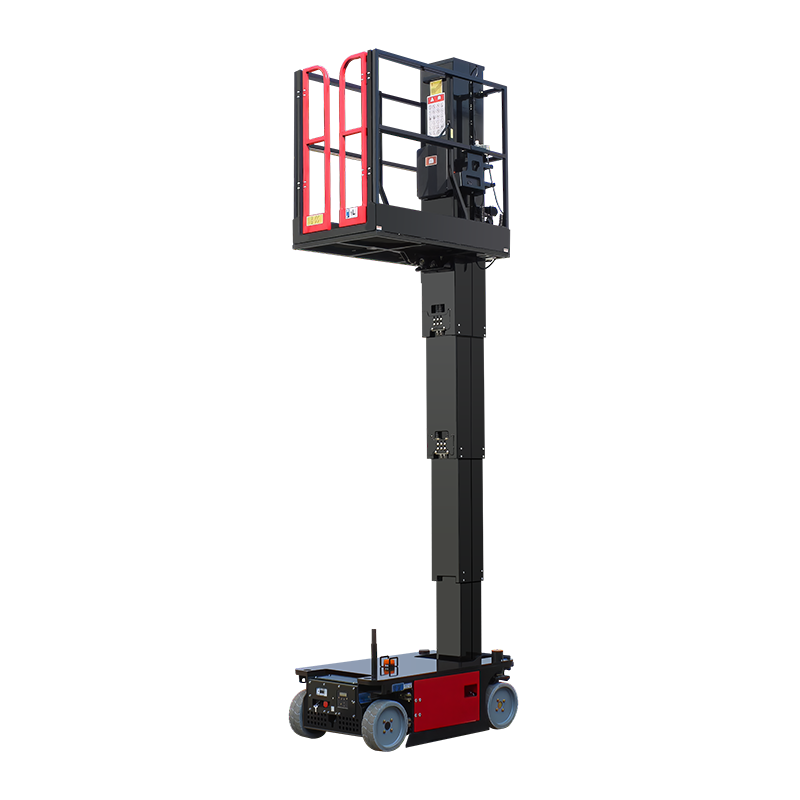

The driveable vertical lifts run on electric power via a reliable electric drive system.

These low-level access lifts offer ease of operation and enhanced maneuverability,

ensuring smooth work in narrow aisles.

Facebook
Twitter
LinkedIn

Product Parameter

With their agility, compact dimensions, and straight elevation,  vertical mast lifts are incredibly easy to drive in the tightest spaces, making them the perfect AWP and MEWP tools for indoor access. The extension platform provides additional space for greater functionality.
Модель GMH AMWP3.6-6100 GMH AMWP4.8-6100 GMH AMWP6-6100
Max. Working Height 5.6 m 6.8 m 8 m
Max. Platform Height 3.6 m 4.8 m 6 m
Loading Capacity 227 kg 227 kg 159 kg
Ext. Грузоподъемность платформы 114 kg 114 kg 114 kg
Overall Length 1.36 m 1.36 m 1.36 m
Overall Width 0.76 m 0.76 m 0.82 m
Общая высота 1.7 m 1.98 m 1.98 m
Platform Dimension 1.3 m x 0.70 m 1.3 m x 0.70 m 1.28 m x 0.70 m
Ext. Platform Length 0.51 m 0.51 m 0.51 m
